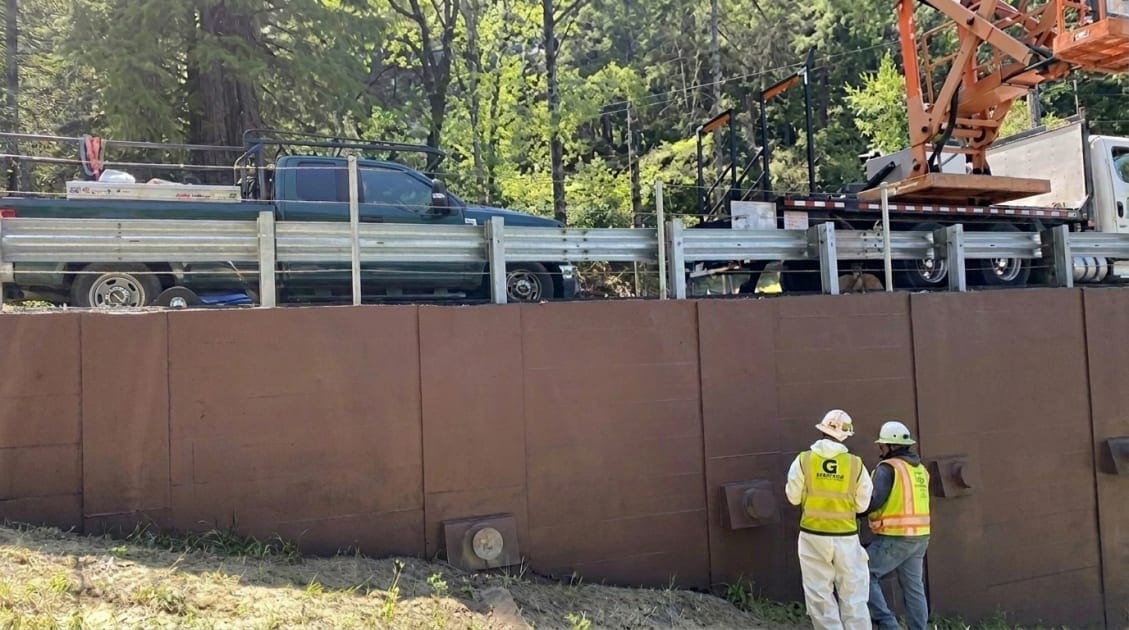

Winter storms took out part of US 101 near Cook Valley. After the Department of Transportation rebuilt the slope with a 14-foot-tall, 2,500-square-foot retaining wall, NanoTech coated its timber facing with Wildfire Shield, so a future fire would not undo the repair.
In early 2023, heavy winter storms saturated the slopes above the South Fork Eel River. A major slip out collapsed parts of the southbound lanes of U.S. 101 near Cook Valley. To keep traffic moving, the Department of Transportation set up one-way traffic control with round-the-clock monitoring while geotechnical drilling and soil-nail stabilization were mobilized on site.
As part of the emergency response, the Department of Transportation let an expedited contract for a permanent fix. It included a 14-foot-tall, 2,500-square-foot welded-wire MSE retaining wall. Cesaretti designed it, Granite Construction built it, and it went in next to the failure area to stabilize the slope and restore long-term roadway support. NanoTech then coated the wall's timber facing with Wildfire Shield to protect the new structure against the corridor's wildfire risk.
Project at a glance
Client | Department of Transportation |
Location | U.S. 101 near Cook Valley (Ukiah area), California |
Contractor | Granite Construction (wall design: Cesaretti) |
Product | NanoTech Materials Wildfire Shield |
Scope | ~2,500 sq ft timber facing on a 14-ft-tall MSE wall |
Application | On-site coating |
Timeframe | 2024 (storm event: early 2023) |
Substrate | Timber lagging facing on a welded-wire MSE wall |
2,500 sq ft Timber facing coated | 14 ft Wall height | Class A ASTM E84 (0 / 0) |
An emergency repair in a fire-prone canyon
The slip out took out lanes of a critical north-coast highway. The Department of Transportation stabilized the slope and rebuilt with a welded-wire MSE wall faced in timber lagging. The South Fork Eel River canyon is remote, heavily forested and wildfire-prone, so a freshly rebuilt emergency structure faced in combustible timber needed protection, or a future fire could undo the work.
Two hazards in the same corridor
This stretch of canyon carries two threats at once: storm-saturated slopes that slide, and wildfire. Hardening the timber facing with a passive coating answered the second hazard right after the first one was handled.
Why the timber facing needed protection, and how the coating works
Timber lagging on an MSE wall is exposed, combustible and structurally relevant. Under radiant heat and flame it ignites and chars, and intumescent coatings only react once heating starts, which can be too late to stop ignition.
A passive barrier that needs no activation energy
Wildfire Shield is non-sacrificial and works from the moment it cures. Its patented ICP technology pairs high emissivity, high reflectivity and low thermal conductivity to reflect and re-radiate heat and slow its path into the wood, forming a high-temperature thermal barrier with no flame spread and no smoke development (ASTM E84 Class A, 0/0).
In testing witnessed by Department of Transportation personnel, coated timber lagging was held under a direct propane-torch flame for 20 minutes while the thermocouples behind the coating stayed near ambient.
Wildfire Shield applied to the new wall's timber facing
NanoTech-guided applicators coated roughly 2,500 square feet of timber facing across the 14-foot-tall wall. They cleaned and moisture-checked the substrate, then built Wildfire Shield up in passes to the specified dry-film thickness, following the lagging across the full height of the wall.
What the coating system delivered
Class A fire protection on the wall's exposed timber facing (ASTM E84, 0/0)
Passive, non-sacrificial protection with no activation energy
Resilience added to a critical emergency repair on US 101
Protection built to last across repeated fire events when maintained
A water-based coating suited to a sensitive river canyon
Backed by NanoTech's 10-year material warranty
Two hazards, one corridor.
The remote canyon that produced the storm-driven slope failure on US 101 is also wildfire-prone, which made passive fire protection a natural complement to the emergency slope repair.
An emergency repair, now fire-hardened
The rebuilt 14-foot wall came away with its timber facing under Class A passive fire coating. That protects the investment in the emergency slope repair and keeps a key north-coast highway link resilient against the corridor's wildfire risk.
What this means for your team
The same outcome reads differently depending on your role. Here is what this project means for the people who own, specify and apply fire-protection coatings.
For DOT structural & fire-protection engineers
Wildfire Shield gives specifiers a documented, independently tested alternative to defaulting to concrete for fire-exposed wooden infrastructure. It is verified to ASTM E84 (Class A, 0/0), plus E119, E162 and E662, and it came through a 20-minute direct flame-impingement test on timber lagging witnessed by Department of Transportation personnel. That is the kind of evidence it takes to qualify a non-traditional material with confidence.
For DOT district managers & budget authorities
Coating in place, or shop-applying off-site, preserves existing timber lagging instead of replacing it with costlier concrete or steel. Wildfire Shield is non-sacrificial and is built to protect the structure across repeated fire events when the system is maintained, so it stretches mitigation budgets across more lane-miles while keeping crews and traffic moving.
For bridge & highway contractors / applicators
Wildfire Shield is sprayed or rolled with common equipment and conforms to the geometry of timber lagging, abutments and fences, with no jacketing or fabrication required. On-site or off-site shop application removes seasonal and just-in-time bottlenecks, and NanoTech's certified-applicator training and supervision keep DOT-specified work on schedule.
Wildfire Shield technical specifications
Wildfire Shield is a water-based, non-sacrificial fire-mitigation coating built on NanoTech's patented Insulative Ceramic Particle (ICP) technology. Key published properties are summarized below; confirm project specifics against the current Technical Data Sheet and SDS.
Property | Wildfire Shield |
Product | NanoTech Materials Wildfire Shield (Fire Protective Coating System) |
Coating type | Non-sacrificial, passive fire-mitigation coating; a water-based, flexible elastomeric polymer formulated with NanoTech's patented Insulative Ceramic Particle (ICP) additive |
How it protects | High emissivity, high reflectivity and low thermal conductivity work together as a high-temperature thermal barrier, resisting flame spread and blocking radiant and conductive heat transfer with no activation energy required (unlike intumescents) |
Fire rating (ASTM E84) | Class A: Flame Spread 0, Smoke Developed 0 |
Tested and validated | Tested to ASTM E84, E119, E162 and E662, and validated by Department of Transportation personnel, including a 20-minute direct propane-torch flame test on coated timber lagging |
Max temperature resistance | Withstands direct flame exposure up to 3,272°F (1,800°C) |
Durability | Holds adhesion and performance through repeated wildfire events; the flexible formula resists cracking, water swelling and abrasion |
Composition and VOCs | Water-based and non-toxic, with no reportable VOCs and no toxic runoff or leaching |
Film build | 20 to 75 wet mils per pass, built to a target 2 mm dry-film thickness (DFT) |
Application methods | Airless spray or roller; pre-applied off-site or applied in the field with common equipment |
Application temperature | 41°F to 120°F |
Surface prep | Power-wash or air-blast to remove debris; no primer required in most cases |
Moisture and cure | Apply when surface humidity is below 19%; allow at least 48 hours before exposure to rain or freezing |
Maintenance | Annual inspections recommended; touch up by overcoating, and clean with soapy water or a low-pressure wash |
Storage and shelf life | Store between 41°F and 100°F and avoid freezing; 12-month shelf life |
Substrate compatibility | Timber lagging and other Department of Transportation-approved substrates |
Quality and warranty | Manufactured under an ISO 9001:2015 quality framework; 10-year material warranty (terms apply) |
Frequently asked questions
Can Wildfire Shield be applied to timber on an MSE or welded-wire wall?
Yes. The coating follows and protects the timber-lagging facing no matter what structural wall system sits behind it, including welded-wire MSE walls.
How is Wildfire Shield different from intumescent fireproofing?
Intumescent coatings have to be triggered by fire. They char and swell only after the substrate begins to heat, so the wood can ignite before the coating activates, and the char can give off smoke and toxicity. Wildfire Shield is non-sacrificial and works the moment it is applied. Its mix of high emissivity, high reflectivity and low thermal conductivity reflects and re-radiates heat and slows the heat that reaches the wood, with no flame spread and no smoke development (ASTM E84 Class A, 0/0).
Can the coating survive more than one fire?
Yes. Because it is non-sacrificial, Wildfire Shield is designed to protect the underlying structure through repeated wildfire events when the coating system is inspected and maintained. NanoTech recommends yearly inspections for wear, cracking or damage, and worn areas can be touched up by overcoating rather than fully replaced.
How hot can Wildfire Shield withstand?
It withstands direct flame exposure up to 3,272°F (1,800°C). In testing witnessed by Department of Transportation personnel, coated timber lagging was held under a direct propane-torch flame for 20 minutes while the thermocouples behind the coating stayed near ambient.
Is it safe and environmentally responsible?
Wildfire Shield is water-based and non-toxic, with no reportable VOCs and no toxic runoff or leaching, and it is not classified as hazardous for supply or use. It cleans up with water and suits sensitive settings such as national parks and the wildland-urban interface.
