Insulating Coating vs Metal Jacketing: What Actually Decides It

Two systems keep landing on the same line item for hot process equipment. One is mineral wool or a similar fibrous insulation, cut to fit and enclosed in metal jacketing. The other is an insulating ceramic coating applied directly to the steel. Specifications tend to compare the two on thermal performance and leave it there. That comparison misses what usually drives the decision on a live unit: access, geometry, and what happens the next time somebody needs to see the substrate.

The comparison gets framed on the wrong axis

A jacketed system and a coating are not two versions of the same idea. A jacketed system builds an insulating layer around the asset, then encloses that layer in metal. A coating bonds to the substrate and stays there. Almost everything downstream follows from that one structural difference.

State the boundary first, because it keeps the rest of the conversation honest. Insulative Coat: Cool Touch works on substrates from 150°F to 350°F. Below that band, insulation is often not the question. Above it, thick-film and block systems keep their place. Inside the band, both approaches are real candidates, and that is where the decision actually gets made.

Notice what the band describes. It is the classic corrosion-under-insulation window: hot enough to want insulating, cyclic enough to condense, and never hot enough to stay dry. Lines that cool between batches cycle through that window repeatedly. The two options answer it very differently.

Every access point is a demolition point

This is the criterion that moves budgets, and it rarely appears in a thermal comparison.

Jacketed mineral wool has to come off before anyone can look at the steel underneath. That means cutting banding, removing jacketing, pulling insulation, inspecting, then re-insulating and re-jacketing the same section. It is a recurring labor cost, and it recurs at every access point across the life of the asset. Stripping compromised mineral wool and jacketing and then recoating is a different scope from a new install, with different sequencing and a different number attached.

A coating carries none of that. There is no jacketing to remove, so surface condition is visible on a routine walk-down rather than only at turnaround.

That changes the shape of the program, not just the labor line. Teams working jacketed assets tend to manage corrosion under insulation as a discovery problem. You find out at turnaround. You find out during a shutdown. You find out when something fails. With the substrate visible, the same problem moves upstream into design and routine inspection, where acting on it costs far less.

Geometry decides more than a data sheet admits

Straight pipe runs flatter the jacketed system. Real units are not straight pipe runs.

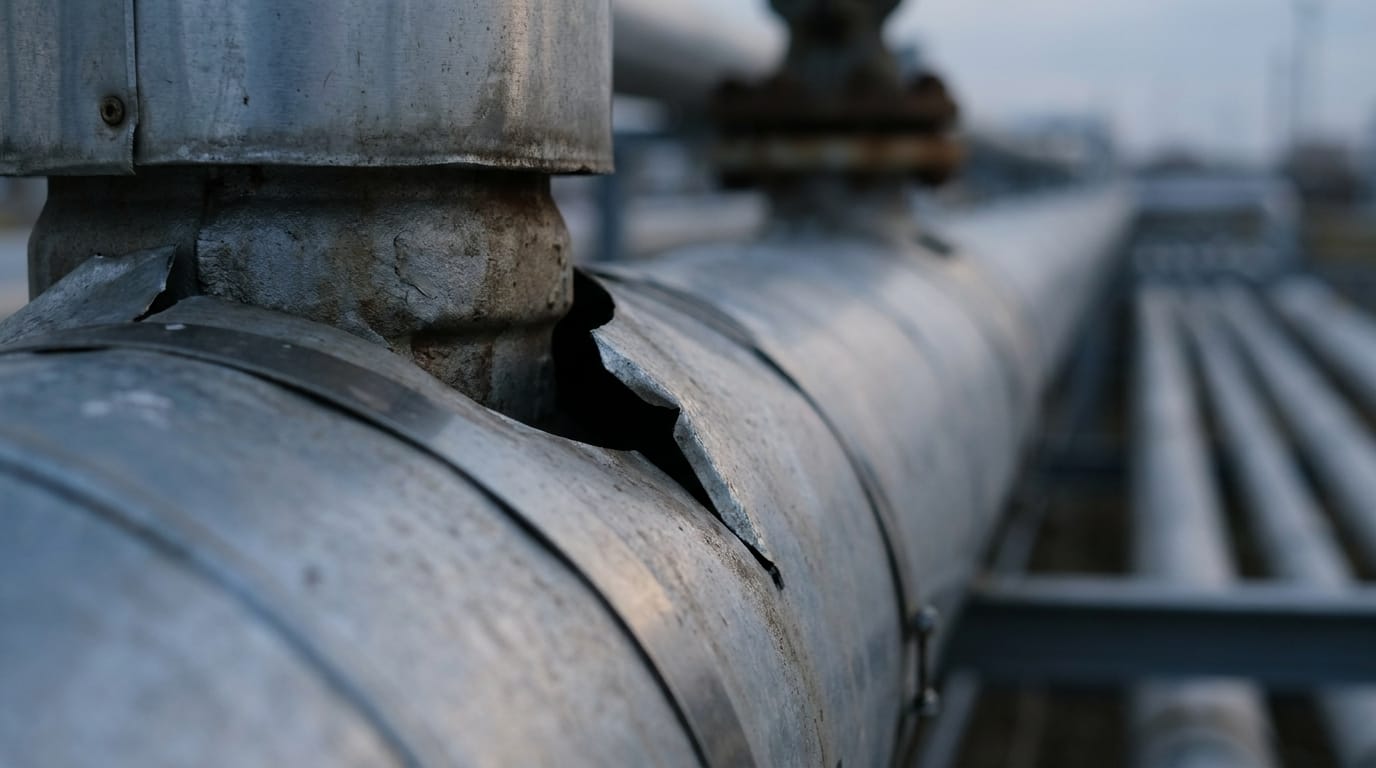

Cut-and-fit insulation leaves a seam at every nozzle and every curve, and each seam is a future water entry point. Valves, flanges, elbows and nozzles are where fit is hardest and where seam count climbs fastest. Fibrous insulation compounds the problem by holding water against the substrate instead of shedding it.

A coating conforms to that geometry because someone applies it to that geometry. There is no annulus between the insulating layer and the steel, and no cut-and-fit joint to hand between trades. On equipment with heavy valve and flange density, that difference is usually larger than any thermal difference between the two systems.

Application logistics follow the same line, and one boundary inside them deserves stating precisely, because two temperature numbers on this page are not on the same basis. The 150°F to 350°F figure is the substrate service range, meaning where the cured coating works. The 200°F figure is a different thing: the highest surface temperature a substrate can sit at while a crew applies the coating to live equipment, in 1 to 2 coats.

The two overlap, and the overlap is where the useful part sits. Below 200°F an asset takes the coating without coming down. Between 200°F and 350°F the asset is still inside the service range, but application waits for it to cool, so that stretch does not get the no-shutdown advantage. Quote either number and say which one you mean.

Once a crew is on the asset, the single-trade recoat window runs 45 to 75 minutes. A block-and-jacket scope is a different shape of work: more than one trade, and full demolition at every future access point.

What the coating gives up

An honest comparison names the boundary in both directions.

Above 350°F on the substrate, this is not the right tool, and treating it as one helps nobody. The band is a real limit rather than a marketing hedge. Where an asset runs hotter than the band, or where the insulating layer also has to carry mechanical load, conventional systems keep the job. Naming that boundary is part of the comparison, not an exception to it.

Cool Touch conforms to NACE TM21423, ISO 9227 and ISO 12944, and it carries no reportable volatile organic compounds. Those are the credentials a specifier will ask for. They are not the argument. The argument is access, geometry, and what the program can see.

Making the call

Three questions get you most of the way there.

Where does the substrate temperature actually sit? Inside 150°F to 350°F, both options are live. Above it, the question answers itself.

How often does someone need to see the steel? The more the honest answer is "often" or "we do not know", the more the visible-substrate argument matters.

How much of the run is fittings? Count nozzles, valves and elbows rather than linear feet. Seam count, not length, drives water entry.

None of those is a thermal question, and that is the point. The two systems differ most in what they do to the rest of your program, and a comparison that ends at the insulating layer never gets there.

The Insulative Coating System pages set out service band, application conditions and standards conformance in more detail than any comparison table holds.
